- Mã sản phẩm: RX-5
- Nhà sản xuất:
- Xuất xứ:
- Giá: Liên hệ
- Lượt xem: 1957
Mô tả

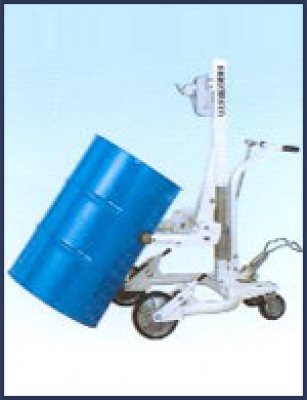

RX-5 : Righting and Conveying Model
Tp.HCM Mr.Vũ Tp.HCM Mr Trưởng Binh Duong Mr.Vu Hải Phòng Ms.Chung Hà Nội Mr Xuân An
RX-5 : Righting and Conveying Model
| Model | RX-5 |
|---|---|
| Load capacity / kg | 300 |
| Distance between front wheels / mm | 630 |
| Overall width / mm | 870 |
| Overall length / mm | 1090 |
| Overall height / mm | 1040 |
| Chuck height / mm | 830～1340 |
| Lifting storoke / mm | 430 |
| Lift per pedal press / mm | 17 |
| Pedal operating force / kg | 25 |
| Front wheels | φ250 rubber × 2 |
| Rear wheels | φ150 rubber × 2 |
| Net weight / kg | 85 |
| Chuck diameter / mm | - |
| Overall protrusion of drum rim neck | - |
