- Mã sản phẩm: RX-K
- Nhà sản xuất:
- Xuất xứ:
- Giá: Liên hệ
- Lượt xem: 1988
Mô tả

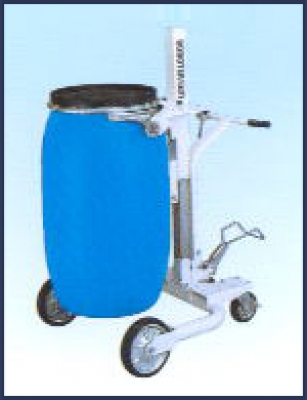

RX-K : Conveyance of Polyethylene Drums
The antlers can grip drums with a rim neck diameter from 470 to 570 mm.
Tp.HCM Mr.Vũ Tp.HCM Mr Trưởng Binh Duong Mr.Vu Hải Phòng Ms.Chung Hà Nội Mr Xuân An
RX-K : Conveyance of Polyethylene Drums
The antlers can grip drums with a rim neck diameter from 470 to 570 mm.
| Model | RX-K |
|---|---|
| Load capacity / kg | 300 |
| Distance between front wheels / mm | 650 |
| Overall width / mm | 890 |
| Overall length / mm | 1090 |
| Overall height / mm | 1040 |
| Chuck height / mm | 710～1220 |
| Lifting storoke / mm | 340～ |
| Lift per pedal press / mm | 17 |
| Pedal operating force / kg | 25 |
| Front wheels | φ250 rubber × 2 |
| Rear wheels | φ150 rubber × 2 |
| Net weight / kg | 83 |
| Chuck diameter / mm | φ470～1570 |
| Overall protrusion of drum rim neck | 7mm or greater |
